250 Series Terminals

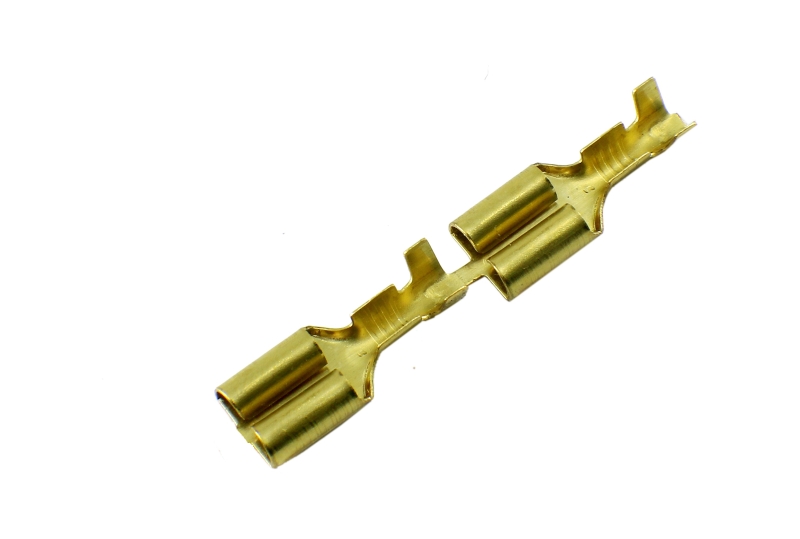

TERMINAL 6.4 F
TERMINAL 6.4 F
Tab Size: 6.30X0.80
TERMINAL 6.4 F
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TLB-0205 | 6.30X0.80 | 0.50~1.25 | PMTL-TLB-0208 / PMTL-TLB-0241 |

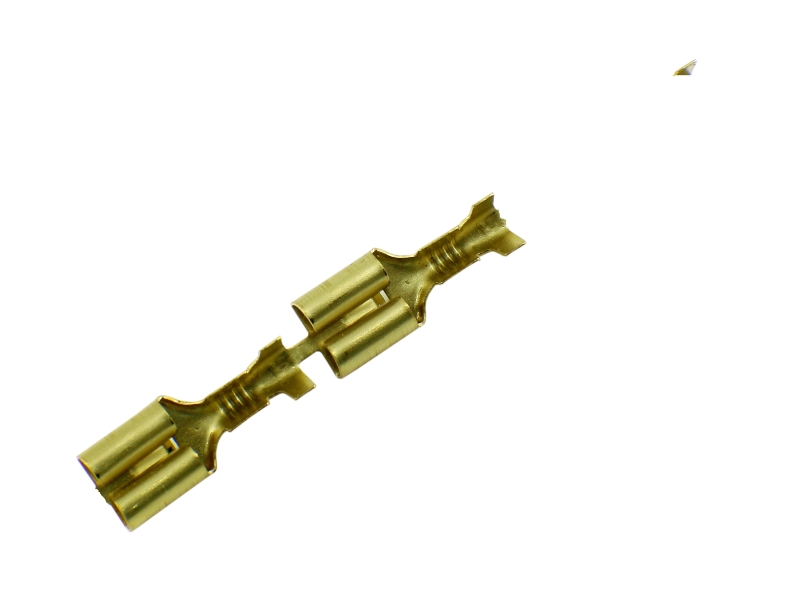

TERMINAL 6.4 F LOCK
TERMINAL 6.4 F LOCK
Tab Size: 6.30X0.80
TERMINAL 6.4 F LOCK
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TLB-0134 | 6.30X0.80 | 0.75~1.50 | PMTL-TLB-0210 |
TERMINAL 6.4 F POSITIVE LOCK PLATED
TERMINAL 6.4 F POSITIVE LOCK PLATED
Tab Size: 6.30X0.80
TERMINAL 6.4 F POSITIVE LOCK PLATED
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TIN-0009 | 6.30X0.80 | 0.50~1.25 | NA |
TERMINAL 6.4 F SLOTED
TERMINAL 6.4 F SLOTED
Tab Size: 6.30X0.80
TERMINAL 6.4 F SLOTED
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TLB-0167 | 6.30X0.80 | 1.00~2.50 | NA |
TERMINAL 6.4 F SMALL (FD)
TERMINAL 6.4 F SMALL (FD)
Tab Size: 6.30X0.80
TERMINAL 6.4 F SMALL (FD)
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TLB-0091 | 6.30X0.80 | 0.75~1.50 | PMTL-TLB-0208 |
TERMINAL 6.4 M
TERMINAL 6.4 M
Tab Size: 6.30X0.80
TERMINAL 6.4 M
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TLB-0208 | 6.30X0.80 | 0.75~1.50 | PMTL-TLB-0205 |
TERMINAL 6.4 M BIG LEG
TERMINAL 6.4 M BIG LEG
Tab Size: 6.30X0.80
TERMINAL 6.4 M BIG LEG
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TLB-0241 | 6.30X0.80 | 1.00~2.50 | PMTL-TLB-0205 |
TERMINAL 6.4 M LOCK
TERMINAL 6.4 M LOCK
Tab Size: 6.30X0.80
TERMINAL 6.4 M LOCK
| Part Code | Tab Size | Cable Size (mm²) | Applicable Mating Terminal |
|---|---|---|---|
| PMTL-TLB-0210 | 6.30X0.80 | 0.75~1.50 | PMTL-TLB-0134 |
